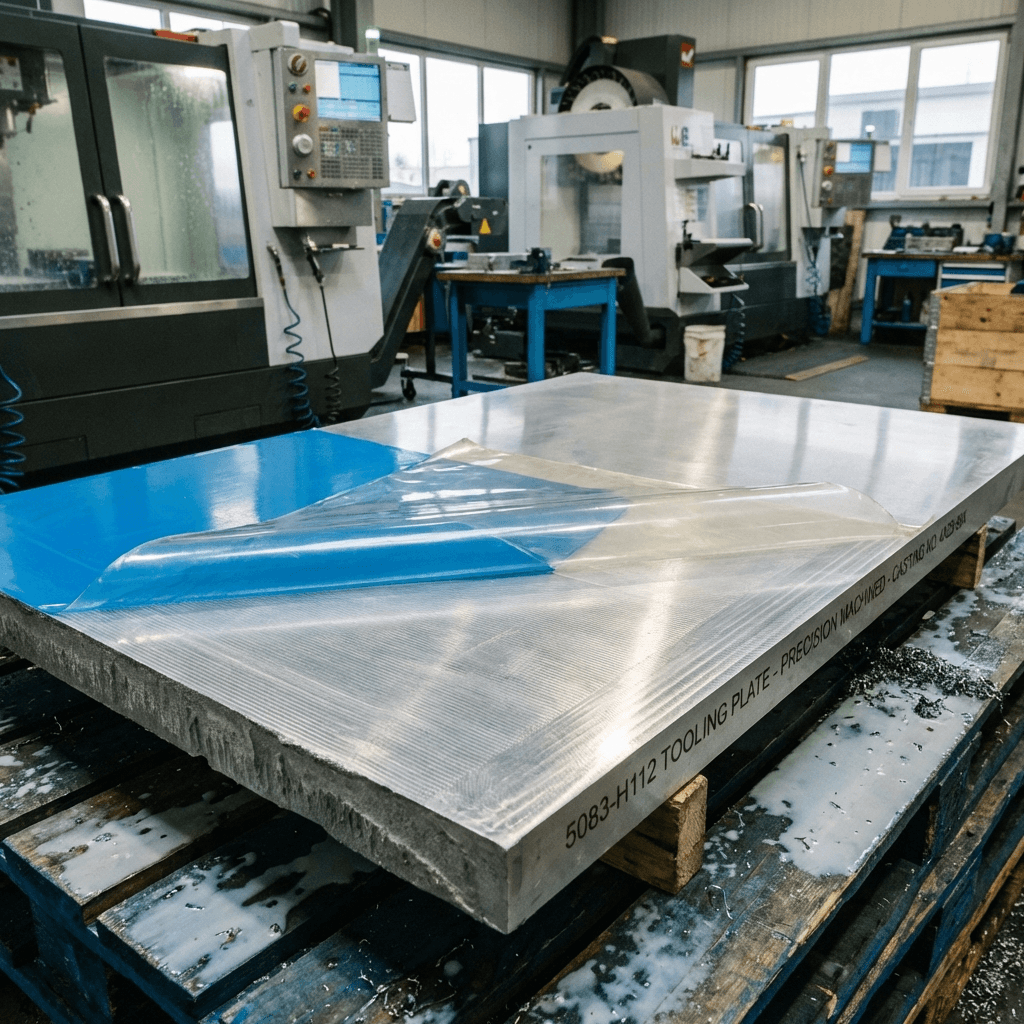

Aluminium Tooling Plate Grade 5083 (Cast & Machined)
Price Calculator
Enter dimensions
Enter dimensions to calculate price
EN AW-5083: A specialist aluminium alloy for tool making, mold making and model making. EN AW-5083 is known for its exceptional performance in extreme environments, it is extremely resistant to attack by seawater and industrial chemical environments. 5083 also retains exceptional strength after welding. Features: - Surface machined cast plates - Very good machinability - Excellent corrosion resistance - Good welding properties - Low stress and dimensionally stable - PVC coated on both sides Applications: - Tool making, mold making and model making - Blow molds and injection molds - Laminating tools - Molds for elastomer materials - Molds and heat-stressed parts - Refrigeration technology
| Element | Min % | Max % |
|---|---|---|
| Silicon (Si) | - | 0.4% |
| Iron (Fe) | - | 0.4% |
| Copper (Cu) | - | 0.1% |
| Manganese (Mn) | 0.4% | 1.0% |
| Magnesium (Mg) | 4.0% | 4.9% |
| Chromium (Cr) | 0.05% | 0.25% |
| Zinc (Zn) | - | 0.1% |
| Titanium (Ti) | - | 0.15% |
| Standard | Grade |
|---|---|
| EN AW | EN AW-5083 (Al Mg4.5 Mn0.7) |
| BS | N8 |
| Italy UNI | 7790 |
| Spain | L-3321 |
| Sweden | 144140 |
| Norway | 17215 |
| France AFNOR | A-G4,5MC |
Available stock of machined cast aluminium tooling plate EN AW-5083
| Thickness (mm) | Tolerance (mm) | 3600 x 1650 (Flatness) | 6000 x 2200 (Flatness) |
|---|---|---|---|
| 5 - 6 | ± 0.075 | 0.75 – 0.85 mm | 0.75 – 0.85 mm |
| 6 - 13 | ± 0.075 | 0.35 – 0.43 mm | 0.35 – 0.43 mm |
| ≥ 13 | ± 0.075 | 0.075 – 0.125 mm | 0.075 – 0.125 mm |
