Brass/Diameter

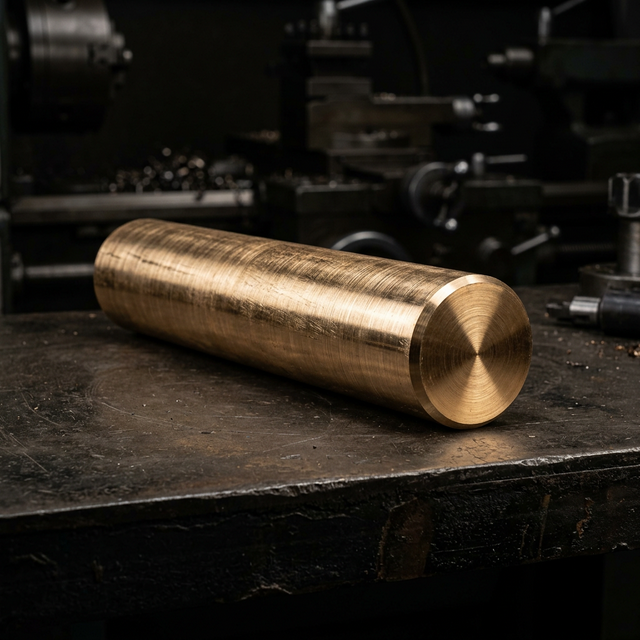

Aluminium Bronze (AB2 / CuAl10Fe5Ni5)
GradeAB2SKUBR-AB2
Price Calculator
Enter dimensions
mm
mm
Enter dimensions to calculate price
Next Day Delivery
Free Cutting
ISO 9001
Aluminium Bronze (AB2) is a high-strength copper alloy containing aluminium, iron, and nickel. It combines excellent corrosion resistance (particularly in seawater) with high mechanical strength and wear resistance. Commonly used for: • Marine fittings and propellers • Bearing bushes and gears • Valve seats and pump components • Heavy-duty fasteners • Heat exchangers Available as round bar in a range of metric and imperial diameters, cut to required length.
| Element | Min % | Max % |
|---|---|---|
| Copper (Cu) | - | Balance |
| Aluminium (Al) | 8.5% | 11.0% |
| Iron (Fe) | 2.0% | 6.0% |
| Nickel (Ni) | 4.0% | 6.0% |
| Manganese (Mn) | - | 1.5% |
| Property | Value | Unit |
|---|---|---|
| Tensile Strength | 640 min | MPa |
| Proof Stress 0.2% | 250 min | MPa |
| Elongation A5 | 12 min | % |
| Hardness | 170 min | HB |
| Standard | Grade |
|---|---|
| BS 2874 | CA104 |
| EN | CuAl10Fe5Ni5 |
| Werkstoff | 2.0966 |
