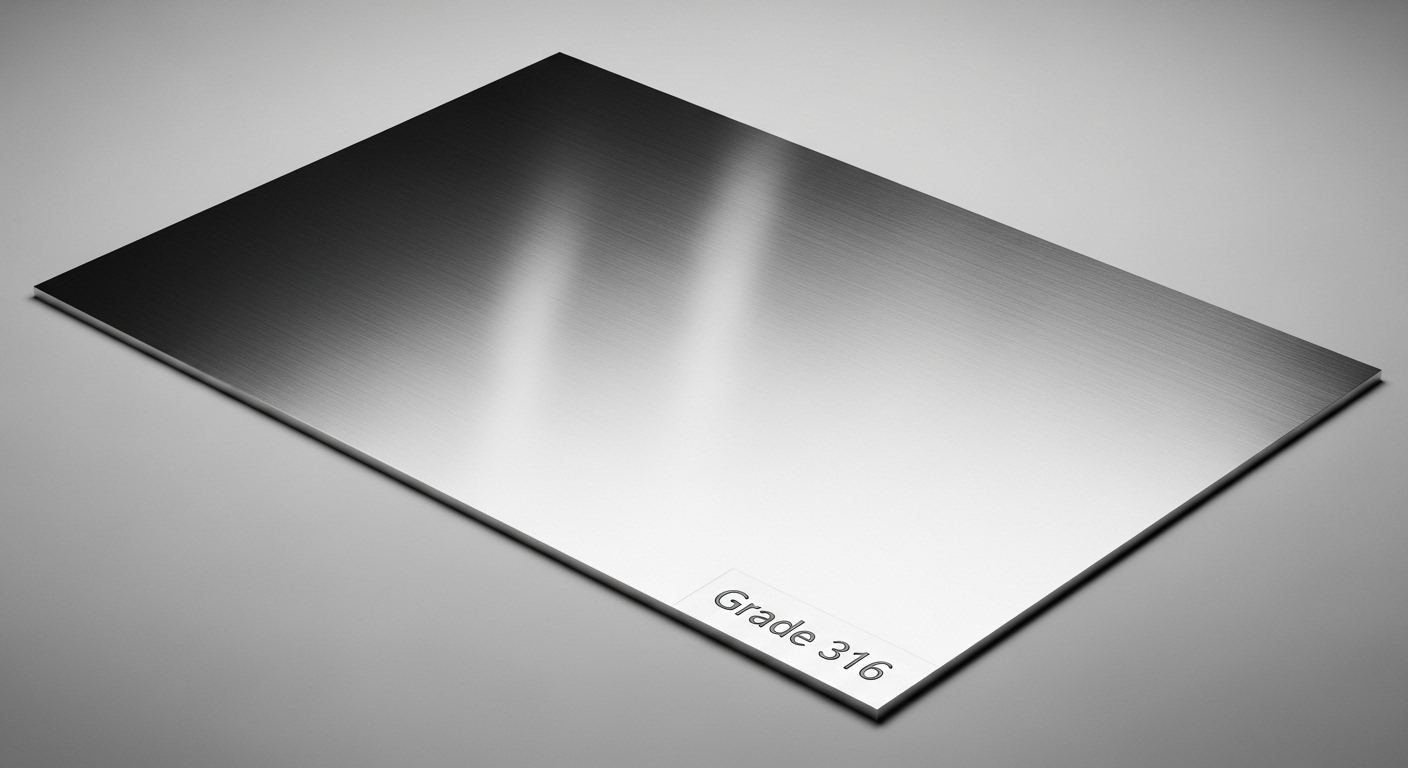

Stainless Steel Sheet Grade 316 (Sheet, Plate, Tube, Mesh & Bar)

316 · SS-316-SH

Next Day Delivery

Free Issue Cutting

ISO 9001 Certified

Stainless Steel/Sheet

Stainless Steel 316 Sheet, Plate & Bar

Name: Stainless Steel Sheet Grade 316 (Sheet, Plate, Tube, Mesh & Bar)
Brand: Stainless & Aluminium Services Ltd
SKU: SS-316-SH
Availability: InStock

Grade316SKUSS-316-SH

Price Calculator

Enter dimensions

Width(mm)

Thickness(mm)

Length(mm)

Quantity:

Enter dimensions to calculate price

Pre-Cut Sizes

Select a standard size for instant pricing

Minimum order value £8.00 ex. VAT

2500 × 1250 × 0.9mm

£207.00

ex. VAT

2500 × 1250 × 1.2mm

£280.00

ex. VAT

2500 × 1250 × 1.5mm

£345.60

ex. VAT

2500 × 1250 × 2.0mm

£460.80

ex. VAT

2500 × 1250 × 3.0mm

£697.50

ex. VAT

3000 × 1500 × 1.5mm

£497.70

ex. VAT

3000 × 1500 × 2.0mm

£650.70

ex. VAT

Marine grade austenitic stainless steel

Stock, Processing & Delivery

Stainless steel 316 and 316L contain molybdenum for improved resistance to chlorides and aggressive environments, making the grade a strong choice for marine, food and chemical applications.

Available as sheet, plate, tube, mesh, round bar and flat bar.
Improved pitting resistance compared with grade 304.
Cut-to-size stock with no minimum quantity.

Frequently Asked Questions

What is stainless steel 316 used for?

Stainless steel 316 is used for marine equipment, food processing, chemical plant, medical equipment and components exposed to chlorides or aggressive environments.

Why is stainless steel 316 called marine grade?

Grade 316 is often called marine grade because its molybdenum content improves resistance to chloride pitting compared with grade 304.

What is the difference between 316 and 316L?

Stainless steel 316L has lower carbon content, which improves resistance to sensitisation and intergranular corrosion after welding.

Technical buying guidance reviewed 5 June 2026.

Next Day Delivery

Free Cutting

ISO 9001

316 Stainless Steel is commonly used for food processing equipment, and as surgical stainless steel. 316 is also know as marine grade stainless steel due to its higher resistance to chloride corrosion compared to type 304. 316L is an extra low carbon grade of 316, often found in stainless steel watches. Its resistance to chloride attack means it is often selected for use in marine atmospheres. 316Ti includes titanium for heat resistance, a typical application would be flexible chimney liners. 316 stainless steel is a molybdenum-bearing grade. This addition gives the better overall corrosion resistance properties than type 304and higher creep strength at elevated temperatures. All stainless stock can be delivered mirror polished if required, Call for details.

Element	Min %	Max %
Carbon (C)	-	0.08%
Manganese (Mn)	-	2.0%
Silicon (Si)	-	0.75%
Phosphorus (P)	-	0.045%
Sulphur (S)	-	0.03%
Chromium (Cr)	16.0%	18.0%
Nickel (Ni)	10.0%	14.0%
Molybdenum (Mo)	2.00%	3.00%
Nitrogen (N)	-	0.10%

Property	Value	Unit
Proof Stress 0.2%	205 min	MPa
Tensile Stress	515 - 720	MPa
Elongation A5	40 min	%
Hardness (HB)	217 max	–
Hardness (HRC)	19 max	–

Standard	Grade
BS 970 1991	316S31, 316S11, 316S13, 316S33
AISI/SAE	316, 316L
Werkstoff	1.4401, 1.4404, 1.4435, 1.4436

Round bar type 316S11/S31 (1.4404) - Bright Drawn IMA

Dia (mm)	Weight per metre (kg)	Dia (in)	Weight per metre (kg)
3mm	0.06	1/8″	0.06
4mm	0.10	3/16″	0.14
5mm	0.16	1/4″	0.25
6mm	0.23	5/16″	0.39
8mm	0.40	3/8″	0.57
10mm	0.63	7/16″	0.77
12mm	0.90	1/2″	1.01
14mm	1.23	9/16″	1.28
15mm	1.41	5/8″	1.58
16mm	1.60	11/16″	1.91
18mm	2.03	3/4″	2.27
20mm	2.50	7/8″	3.09
24mm	3.60	1″	4.03
25mm	3.91	-	-

ROUND Bar 316S11/S31 (1.4404) - Smooth Turned *Bright Ground IMA

Dia (mm)	Weight per metre (Kg)	Dia (in)	Weight per metre (Kg)
25mm*	3.91	7/8″	3.09
30mm*	5.63	1″*	4.03
32mm	6.40	1 1/8″*	5.11
35mm*	7.66	1 1/4″*	6.30
40mm*	10.00	1 3/8″*	7.63
45mm	12.70	1 1/2″*	9.08
50mm	15.60	1 5/8″*	10.70
60mm*	22.50	1 3/4″*	12.40
-	-	1 7/8″*	14.20
-	-	2″*	16.10
-	-	2 1/8″*	18.20
-	-	2 1/4″*	20.40
-	-	2 3/8″*	22.80
-	-	2 1/2″*	25.20
-	-	2 5/8″	27.80
-	-	2 3/4″*	30.50
-	-	3″*	36.30

Round bar 316S11/S31 - Rough Turned

Dia (in)	Weight per metre (kg)	Dia (in)	Weight per metre (kg)
3″	36.30	185mm	217.00
3 1/4″	43.20	7 1/4″	215.00
3 1/2″	50.20	7 1/2″	230.00
3 3/4″	57.60	8″	262.00
4″	65.50	8 1/2″	296.00
4 1/4″	73.90	220mm	307.00
4 1/2″	82.90	9″	332.00
4 3/4″	92.40	9 1/2″	370.00
5″	102.00	10″	409.00
5 1/4″	113.00	10 1/2″	451.00
5 1/2″	123.00	11″	495.00
5 3/4″	135.00	12″	590.00
6″	147.00	340mm	734.00
6 1/4″	160.00	14″	802.00
6 1/2″	173.00	16″	1049.00
7″	201.00	-	-

Stainless Steel Hexagon bar 316S11/S31

Size (in)	Weight per metre (kg)	Size (in)	Weight per metre (kg)
.3125″	0.43	1.010″	4.50
.324″	0.46	1.100″	5.35
.375″	0.62	1.125″	5.59
.437″	0.84	1.200″	6.36
.500″	1.10	1.250″	6.90
.525″	1.22	1.300″	7.46
.562″	1.39	1.375″	8.35
.600″	1.59	1.480″	9.67
.625″	1.73	1.500″	9.93
.710″	2.22	1.670″	12.30
.750″	2.48	1.750″	13.50
.812″	2.91	1.860″	15.30
.820″	2.97	2.200″	21.40
.875″	3.38	2.220″	21.80
.920″	3.74	2.375″	24.90
.9375″	3.88	2.500″	27.60

Flat 316S11 / S31 - Hot Rolled

Size (mm)	Weight per metre (kg)	Size (mm)	Weight per metre (kg)
20 x 10	1.58	50 x 15	5.93
25 x 10	1.98	60 x 15	7.11
30 x 10	2.37	75 x 15	8.88
40 x 10	3.16	100 x 15	11.90
50 x 10	3.95	25 x 20	3.95
60 x 10	4.74	30 x 20	4.74
75 x 10	5.93	40 x 20	6.32
100 x 10	7.90	50 x 20	7.90
25 x 12	2.37	60 x 20	9.48
30 x 12	2.84	75 x 20	11.90
40 x 12	3.79	100 x 20	15.80
50 x 12	4.74	30 x 25	5.93
60 x 12	5.69	40 x 25	7.90
75 x 12	7.11	50 x 25	9.88
100 x 12	9.48	60 x 25	11.90
25 x 15	2.96	75 x 25	14.80
30 x 15	3.56	100 x 25	19.80
40 x 15	4.74	-	-

FLAT 316L (1.4404) - ROLLED EDGE

Size (mm)	Weight per metre (Kg)	Size (mm)	Weight per metre (Kg)
12 x 3	0.28	50 x 6	2.37
20 x 3	0.47	60 x 6	2.84
25 x 3	0.59	75 x 6	3.56
30 x 3	0.71	100 x 6	4.74
40 x 3	0.95	25 x 8	1.58
50 x 3	1.19	30 x 8	1.90
60 x 3	1.42	40 x 8	2.53
75 x 3	1.78	50 x 8	3.16
100 x 3	2.37	60 x 8	3.79
12 x 5	0.47	75 x 8	4.74
20 x 5	0.79	100 x 8	6.32
25 x 5	0.99	25 x 10	1.98
30 x 5	1.19	30 x 10	2.37
40 x 5	1.58	40 x 10	3.16
45 x 5	1.78	50 x 10	3.95
50 x 5	1.98	60 x 10	4.74
60 x 5	2.37	75 x 10	5.93
75 x 5	2.96	100 x 10	7.90
100 x 5	3.95	25 x 12	2.37
12 x 6	0.57	30 x 12	2.84
20 x 6	0.95	40 x 12	3.79
25 x 6	1.19	50 x 12	4.74
30 x 6	1.42	60 x 12	5.69
40 x 6	1.90	75 x 12	7.11
45 x 6	2.13	100 x 12	9.48

Square bar 316S11/S31 (1.4404)

Size (mm)	Weight per metre (Kg)	Size (mm)	Weight per metre (Kg)
12 x 12	1.14	30 x 30	7.11
16 x 16	2.02	40 x 40	12.60
20 x 20	3.16	50 x 50	19.80
25 x 25	4.94	-	-

ANGLE 316S11/S31 (1.4404)

Size (mm)	Weight per metre (Kg)	Size (mm)	Weight per metre (Kg)
20 x 20 x 3	0.88	50 x 50 x 10	7.11
25 x 25 x 3	1.12	60 x 60 x 5	4.58
25 x 25 x 5	1.78	60 x 60 x 6	5.40
25 x 25 x 6	2.09	60 x 60 x 10	8.69
30 x 30 x 3	1.35	70 x 70 x 6	6.35
30 x 30 x 5	2.17	70 x 70 x 10	10.30
30 x 30 x 6	2.56	75 x 75 x 6	7.37
40 x 40 x 3	1.83	75 x 75 x 10	11.95
40 x 40 x 5	2.96	80 x 80 x 6	7.89
40 x 40 x 6	3.51	80 x 80 x 10	12.80
50 x 50 x 3	2.30	100 x 100 x 6	9.20
50 x 50 x 5	3.75	100 x 100 x 10	15.0
50 x 50 x 6	4.46	-	-

316 Stainless Steel Sheet (1.4401) - Polished 240 grit, white poly coat

Size (mm)	Weight per sheet (kg)	Size (mm)	Weight per sheet (kg)
2500 x 1250 x 1.2	30.7	2500 x 1250 x 2.0	51.2
3000 x 1500 x 1.2	44.2	3000 x 1500 x 2.0	73.7
2500 x 1250 x 1.5	38.4	2500 x 1250 x 3.0	77.5
3000 x 1500 x 1.5	55.3	3000 x 1500 x 3.0	112.0

316 Stainless Steel Sheet - 2B Finish

Size (mm)	Weight per sheet (kg)	Size (mm)	Weight per sheet (kg)
2000 x 1000 x 0.7	11.5	3000 x 1500 x 1.5	55.3
2500 x 1250 x 0.7	17.9	2000 x 1000 x 2.0	32.7
2000 x 1000 x 0.9	14.7	2500 x 1250 x 2.0	51.2
2500 x 1250 x 0.9	23.0	3000 x 1500 x 2.0	73.7
2500 x 1250 x 1.0	25.6	2000 x 1000 x 2.5	40.9
2000 x 1000 x 1.2	19.6	2500 x 1250 x 2.5	63.9
2500 x 1250 x 1.2	30.7	3000 x 1500 x 2.5	92.1
3000 x 1500 x 1.2	44.2	2000 x 1000 x 3.0	49.6
2000 x 1000 x 1.5	24.6	2500 x 1250 x 3.0	77.5
2500 x 1250 x 1.5	38.4	3000 x 1500 x 3.0	112.0

Stainless Steel Plate 316L - Cold Rolled Descaled (ASTM A240)

Size (mm)	Weight per plate (Kg)	Size (mm)	Weight per plate (Kg)
4000 x 2000 x 2.0	136.0	3000 x 1500 x 5.0	191.0
4000 x 2000 x 3.0	204.0	4000 x 2000 x 5.0	340.0
2500 x 1250 x 4.0	106.0	2500 x 1250 x 6.0	159.0
3000 x 1500 x 4.0	153.0	3000 x 1500 x 6.0	230.0
4000 x 2000 x 4.0	272.0	4000 x 2000 x 6.0	408.0
2500 x 1250 x 5.0	133.0	-	-

CPP Plate 1D Finish (316, 316L, 1.4401, 1.4404)

Size (mm)	Weight per plate (kg)	Size (mm)	Weight per plate (kg)
2000 x 1000 x 3.0	51.0	4000 x 2000 x 6.0	408.0
2500 x 1250 x 3.0	79.7	2500 x 1250 x 8.0	213.0
3000 x 1500 x 3.0	115.0	3000 x 1500 x 8.0	306.0
2000 x 1000 x 4.0	68.0	4000 x 2000 x 8.0	544.0
2500 x 1250 x 4.0	106.0	2500 x 1250 x 10.0	266.0
3000 x 1500 x 4.0	153.0	3000 x 1500 x 10.0	383.0
2000 x 1000 x 5.0	85.0	4000 x 1500 x 10.0	510.0
2500 x 1250 x 5.0	133.0	4000 x 2000 x 10.0	680.0
3000 x 1500 x 5.0	191.0	2500 x 1250 x 12.0	319.0
4000 x 2000 x 5.0	340.0	3000 x 1500 x 12.0	459.0
2000 x 1000 x 6.0	102.0	4000 x 1500 x 12.0	612.0
2500 x 1250 x 6.0	159.0	4000 x 2000 x 12.0	816.0
3000 x 1500 x 6.0	230.0	-	-

Seamless Pipe ASTM A312, 316L

NPS/NB (in)	SCH 10S	SCH 40S	SCH 80S	SCH 160
1/8	X	X	-	-
1/4	X	X	X	-
3/8	X	X	X	-
1/2	X	X	X	X
3/4	X	X	X	X
1	X	X	X	X
1 1/4	-	-	X	-
1 1/2	X	X	X	X
2	X	X	X	X
2 1/2	X	X	X	-
3	X	X	X	X
3 1/2	X	X	-	-
4	X	X	X	-
5	-	X	-	-
6	X	X	X	-
8	X	X	X	-

Type 316L Seamless Tube (metric)

O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)
6	0.5	14	1.5	25	1.5
6	1.0	14	2.0	25	2.0
6	1.5	15	1.0	25	2.5
8	1.0	15	1.5	25	3.0
8	1.5	15	2.0	30	1.5
10	1.0	16	1.5	30	2.0
10	1.5	16	2.0	30	3.0
10	2.0	18	1.5	38	3.0
12	1.0	20	1.5	38	4.0
12	1.5	20	2.0	-	-
12	2.0	22	1.5	-	-

316L Seamless Tube ASTM A269

O/D (in)	Wall (swg)	O/D (in)	Wall (swg)
1/8	24	7/8	16
1/8	22	7/8	14
1/8	20	7/8	1/8 inch
3/16	24	1	20
3/16	22	1	18
3/16	20	1	16
3/16	18	1	14
1/4	22	1	12
1/4	20	1	10
1/4	18	1	3/16 inch
1/4	16	1	1/4 inch
5/16	22	1 1/8	16
5/16	20	1 1/4	18
5/16	18	1 1/4	16
5/16	16	1 1/4	14
3/8	22	1 1/4	1/8 inch
3/8	20	1 3/8	16
3/8	16	1 1/2	16
3/8	14	1 1/2	14
3/8	1/8 Inch	1 1/2	1/4 inch
7/16	20	1 1/2	1/8 inch
1/2	22	1 3/4	16
1/2	20	1 3/4	1/8 inch
1/2	18	2	16
1/2	16	2	14
1/2	14	2	1/8 inch
1/2	1/8 Inch	2	1/4 inch
5/8	20	2 1/4	16
5/8	18	2 1/4	10
5/8	16	2 1/4	1/4 inch
5/8	14	2 1/2	16
5/8	1/8 inch	2 1/2	1/8 inch
3/4	20	2 1/2	1/4 inch
3/4	18	3	16
3/4	16	3	14
3/4	14	3	10
3/4	12	3	1/4 inch
3/4	1/8 inch	4	1/4 inch
3/4	3/16	-	-
7/8	18	-	-

Round tube 316 Welded Mirror Polished

O/D (in)	Wall (mm)	Weight per metre (kg)	O/D (in)	Wall (mm)	Weight per metre (kg)
1/2	1.50	0.42	1 1/2	3.00	2.64
5/8	1.20	0.44	50mm	2.50	2.99
5/8	1.50	0.54	50mm	3.00	3.55
3/4	1.20	0.53	2	1.20	1.49
3/4	1.50	0.66	2	1.50	1.85
7/8	1.20	0.63	2	2.00	2.40
7/8	2.00	1.01	2	3.00	7.43
1	1.20	0.73	2 1/2	1.50	2.34
1	1.50	0.90	3	1.50	2.81
1	2.00	1.17	3	3.00	5.52
1 1/4	1.50	1.13	4	3.00	7.42
1 1/2	1.50	1.38	-	-	-

Round tube 316 Welded Dull polished

O/D (in)	Wall (mm)	Weight per metre (kg)
1 1/2	3.00	2.76
2	3.00	7.43
3	3.00	5.52
4	3.00	7.42

TYPE 316 Handrail Section, welded, unannealed (dull polished)

O/D (mm)	Wall (mm)	Weight per metre (kg)	O/D (in)	Wall (mm)	Weight per metre (kg)
42.40	2.5	2.49	1 1/2	3.00	2.62
48.30	2.5	2.86	2	3.00	3.57
60.30	2.5	3.61	3	3.00	5.47
-	-	-	4	3.00	7.38

Square 316 tube Welded dull polished

Dimensions (mm)	Wall (mm)	Weight per metre (kg)	Dimensions (mm)	Wall (mm)	Weight per metre (kg)
20 x 20	1.50	0.88	40 x 40	3.00	3.75
20 x 20	2.00	1.19	50 x 50	2.00	3.08
25 x 25	1.20	0.92	50 x 50	3.00	4.65
25 x 25	1.50	1.14	60 x 60	3.00	5.49
30 x 30	2.00	1.84	80 x 80	2.00	4.98
30 x 30	3.00	2.72	80 x 80	3.00	7.53
40 x 40	1.50	1.85	100 x 100	3.00	9.53
40 x 40	2.00	2.45	100 x 100	5.00	15.30

Rectangular 316 tube welded unpolished

Dimensions (mm)	Wall (mm)	Weight per metre (kg)	Dimensions (mm)	Wall (mm)	Weight per metre (kg)
80 x 40	4.00	7.22	150 x 100	8.00	27.90
80 x 40	5.00	8.90	160 x 80	3.00	11.10
100 x 50	5.00	11.24	200 x 100	4.00	18.60
120 x 80	3.00	9.53	200 x 100	5.00	22.40
120 x 80	5.00	15.38	200 x 100	8.00	34.30
150 x 100	3.00	11.66	200 x 100	10.00	41.65
150 x 100	4.00	15.40	250 x 150	8.00	47.25
150 x 100	5.00	18.80	300 x 100	8.00	47.25
150 x 100	6.00	22.60	-	-	-

Rectangular 316 tube Welded Dull Polished

Dimensions (mm)	Wall (mm)	Weight per metre (kg)	Dimensions (mm)	Wall (mm)	Weight per metre (kg)
40 x 20	2.00	1.84	80 x 40	3.00	5.49
50 x 25	1.50	1.75	120 x 80	3.00	9.53
60 x 40	2.00	3.08	120 x 80	4.00	12.40
80 x 40	2.00	4.98	-	-	-

Square 316 tube Welded unpolished

Dimensions (mm)	Wall (mm)	Weight per metre (kg)	Dimensions (mm)	Wall (mm)	Weight per metre (kg)
30 x 30	3.00	2.72	120 x 120	4.00	15.03
40 x 40	3.00	3.75	120 x 120	5.00	18.66
50 x 50	3.00	4.65	120 x 120	6.00	21.20
50 x 50	4.00	5.96	150 x 150	4.00	18.64
60 x 60	3.00	5.49	150 x 150	5.00	23.00
80 x 80	3.00	7.53	150 x 150	6.00	27.36
80 x 80	4.00	9.82	200 x 200	5.00	30.80
100 x 100	3.00	9.53	200 x 200	6.00	36.90
100 x 100	4.00	12.40	200 x 200	8.00	47.25
100 x 100	5.00	15.38	200 x 200	10.00	57.60
100 x 100	6.00	17.50	250 x 250	10.00	73.50
100 x 100	8.00	21.60	-	-	-

316 Angle (Imperial)

w x h x thickness (in)	w x h x thickness (in)
3/4 x 3/4 x 1/8	2 1/2 x 2 1/2 x 3/16
1 x 1 x 1/8	2 1/2 x 2 1/2 x 1/4
1 x 1 x 3/16	2 1/2 x 2 1/2 x 3/8
1 1/4 x 1 1/4 x 1/8	3 x 4 x 3/16
1 1/4 x 1 1/4 x 3/16	4 x 4 x 1/4
1 1/4 x 1 1/4 x 1/4	4 x 4 x 3/8
1 1/2 x 1 1/2 x 1/8	4 x 4 x 1/2
1 1/2 x 1 1/2 x 3/16	4 x 4 x 3/16
1 1/2 x 1 1/2 x 1/4	4 x 4 x 1/4
2 x 2 x 1/8	4 x 4 x 3/8
2 x 2 x 3/16	4 x 4 x 1/2
2 x 2 x 1/4	5 x 5 x 3/8
2 x 2 x 1/8	-
2 x 2 x 3/8	-

316 Angle (Metric)

w x h x thickness (mm)	w x h x thickness (mm)
20 x 20 x 3	60 x 60 x 6
25 x 25 x 3	65 x 65 x 5
25 x 25 x 5	65 x 65 x 8
30 x 30 x 3	75 x 75 x 6
30 x 30 x 5	75 x 75 x 8
30 x 30 x 6	75 x 75 x 10
40 x 40 x 3	80 x 80 x 6
40 x 40 x 5	80 x 80 x 10
40 x 40 x 6	80 x 80 x 12
50 x 50 x 3	100 x 100 x 6
50 x 50 x 5	100 x 100 x 8
50 x 50 x 6	100 x 100 x 10
50 x 50 x 8	100 x 100 x 12
50 x 50 x 10	-

Need Help With This Product?

Our technical sales team responds within 2 hours

01902 423 674 Get Quote

O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)
6	0.5	14	1.5	25	1.5
6	1.0	14	2.0	25	2.0
6	1.5	15	1.0	25	2.5
8	1.0	15	1.5	25	3.0
8	1.5	15	2.0	30	1.5
10	1.0	16	1.5	30	2.0
10	1.5	16	2.0	30	3.0
10	2.0	18	1.5	38	3.0
12	1.0	20	1.5	38	4.0
12	1.5	20	2.0	-	-
12	2.0	22	1.5	-	-

O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)
6	0.5	14	1.5	25	1.5
6	1.0	14	2.0	25	2.0
6	1.5	15	1.0	25	2.5
8	1.0	15	1.5	25	3.0
8	1.5	15	2.0	30	1.5
10	1.0	16	1.5	30	2.0
10	1.5	16	2.0	30	3.0
10	2.0	18	1.5	38	3.0
12	1.0	20	1.5	38	4.0
12	1.5	20	2.0	-	-
12	2.0	22	1.5	-	-

Stainless Steel 316 Sheet, Plate & Bar

Price Calculator

Pre-Cut Sizes

Stock, Processing & Delivery

Related Products & Guidance

Frequently Asked Questions

What is stainless steel 316 used for?

Why is stainless steel 316 called marine grade?

What is the difference between 316 and 316L?

Round bar type 316S11/S31 (1.4404) - Bright Drawn IMA

ROUND Bar 316S11/S31 (1.4404) - Smooth Turned *Bright Ground IMA

Round bar 316S11/S31 - Rough Turned

Stainless Steel Hexagon bar 316S11/S31

Flat 316S11 / S31 - Hot Rolled

FLAT 316L (1.4404) - ROLLED EDGE

Square bar 316S11/S31 (1.4404)

ANGLE 316S11/S31 (1.4404)

316 Stainless Steel Sheet (1.4401) - Polished 240 grit, white poly coat

316 Stainless Steel Sheet - 2B Finish

Stainless Steel Plate 316L - Cold Rolled Descaled (ASTM A240)

CPP Plate 1D Finish (316, 316L, 1.4401, 1.4404)

Seamless Pipe ASTM A312, 316L

Type 316L Seamless Tube (metric)

316L Seamless Tube ASTM A269

Round tube 316 Welded Mirror Polished

Round tube 316 Welded Dull polished

TYPE 316 Handrail Section, welded, unannealed (dull polished)

Square 316 tube Welded dull polished

Rectangular 316 tube welded unpolished

Rectangular 316 tube Welded Dull Polished

Square 316 tube Welded unpolished

316 Angle (Imperial)

316 Angle (Metric)

Need Help With This Product?

O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)	O/D (mm)	Wall (mm)
6	0.5	14	1.5	25	1.5
6	1.0	14	2.0	25	2.0
6	1.5	15	1.0	25	2.5
8	1.0	15	1.5	25	3.0
8	1.5	15	2.0	30	1.5
10	1.0	16	1.5	30	2.0
10	1.5	16	2.0	30	3.0
10	2.0	18	1.5	38	3.0
12	1.0	20	1.5	38	4.0
12	1.5	20	2.0	-	-
12	2.0	22	1.5	-	-
