Engineering Steel/Flat Bar

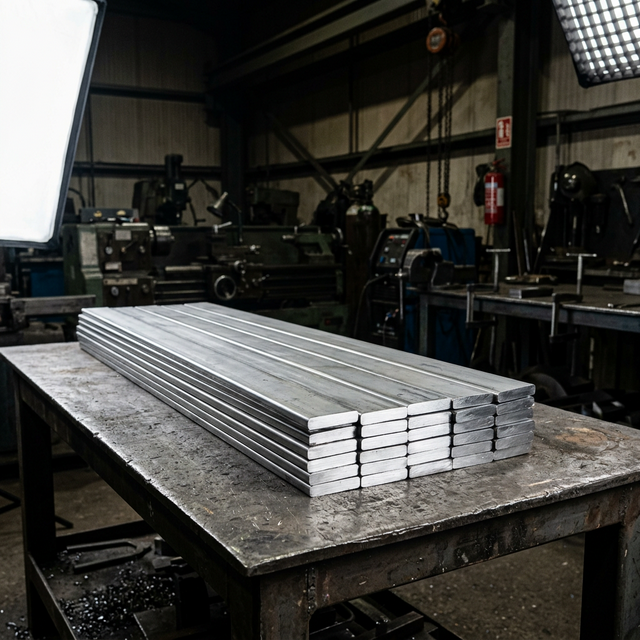

BDMS (080A15) Flats – Bespoke Cut
Grade080A15SKUES-BDMS-FLAT
Price Calculator
Enter dimensions
mm
Enter dimensions to calculate price
Next Day Delivery
Free Cutting
ISO 9001
Bright Drawn Mild Steel (BDMS) 080A15 flat bar is a low carbon steel with a smooth, bright surface finish achieved through the cold drawing process. It offers improved surface quality, better dimensional accuracy, and higher tensile strength compared to hot rolled equivalents. BDMS 080A15 flats are commonly used for: • General engineering applications • Brackets and supports • Jigs and fixtures • Machine components • Bright fabrication work Available in a wide range of standard width × thickness combinations, bespoke cut to your required length.
| Element | Min % | Max % |
|---|---|---|
| Carbon (C) | 0.12% | 0.18% |
| Manganese (Mn) | 0.60% | 0.90% |
| Silicon (Si) | - | 0.35% |
| Phosphorus (P) | - | 0.040% |
| Sulphur (S) | - | 0.040% |
| Property | Value | Unit |
|---|---|---|
| Tensile Strength | 430 - 580 | MPa |
| Yield Strength | 340 min | MPa |
| Elongation A5 | 14 min | % |
| Hardness (HB) | 125 - 170 | – |
| Standard | Grade |
|---|---|
| BS 970 | 080A15 |
| AISI/SAE | 1015 |
| Werkstoff | 1.0401 |
